The success behind an HVLP spray gun, is the low amount of overspray.

This is achieved by having an improved atomization, by using a lower air pressure and a higher volume of airflow.

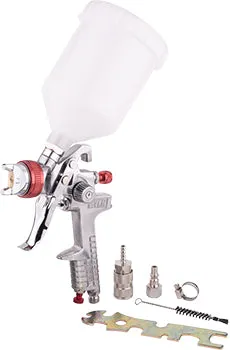

Included in kit:

• 1/4 BSP Connector for spray gun
• Universal coupler for Ø 8mm ID hose



HVLP - High Volume Low Pressure

Features:

• Cast aluminium body construction
• Comfortable, balanced and easy to control by having the gravity cup angled slightly backwards
• Light in weight, thanks to the aluminium body
• Easy spray pattern and fluid control adjustment
• Stainless steel fluid tip and needle
• Rotatable aircap to change spray pattern direction

consider safety for your health and the people around you
General safety suggestions: It is advisable to always have the following items nearby and in a good condition Eye protection clean and scratch free Hearing protection quality earmuffs Dust masks discard old and dirty masks Gloves for easy handling of material and hand protection
Wear Gloves	Eye Protection	Hearing Protection	Dust Mask

Description	Specification
Working pressure	45-60 Psi (3 - 4 Bar)
Cup capacity	600 ml
Feed type	Gravity feed
Airflow consumption	170 - 300 l/min
Air inlet hread	1/4 BSP
Nozzle/Needle	Ø 1.4mm



---
